Easy Installation
Integrated Design of Cabinet

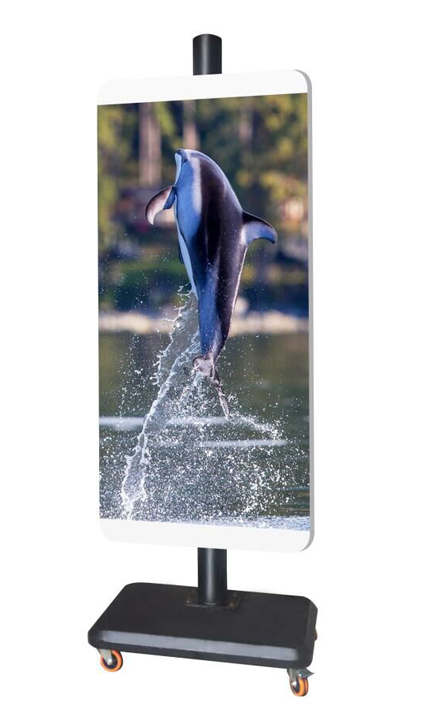

Various Mounting mothod Available
Smart Asynchronous control
Group Intelligent Control(GIC System)
Location Precise Advertising
AIPs Control System
Instant Program change within 2 seconds
Easy Maintenance

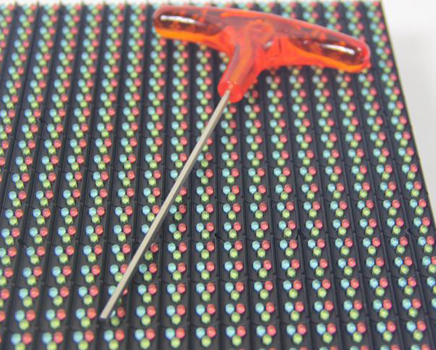

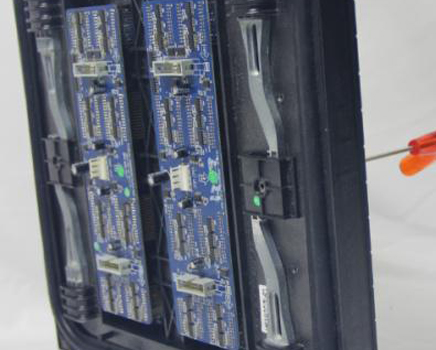

Front Access Modules
Customized Size
We can design according to your requirement
规格书
规格书

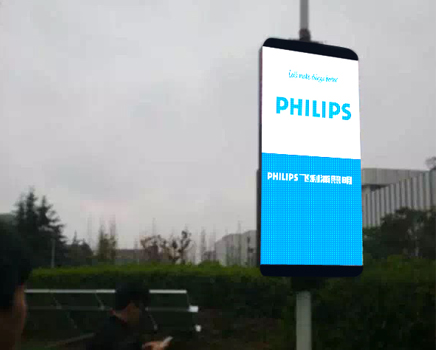

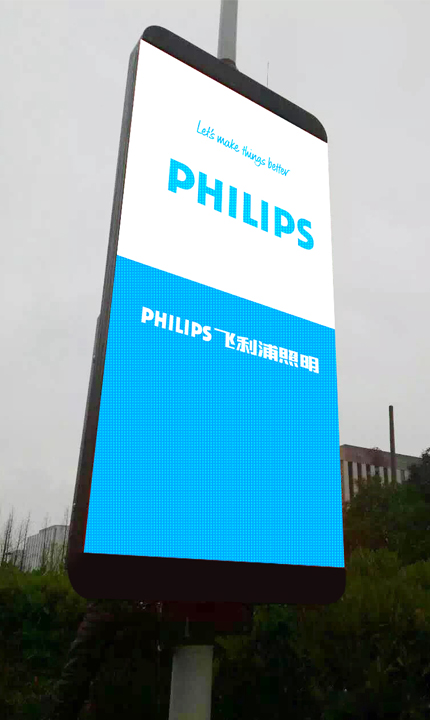

| Product: | Pole Mounted LED Display |
| Model Type | AL10-DIP-F |
| Pixel Pitch (mm) | 10 |
| Pixel Configuration | 1R1G1B |
| LED type | DIP 346 |
| Module Size（mm) | 160*160 |
| Screen Size （mm) | 960mm(L)* 1920mm(H) |
| Cabinet Size (mm) | 960mm(L)* 2120mm(H) |
| Cabinet Materials | Aluminum |
| Weight | 55kg/m2(Iron) 45kg/m2(Aluminum) |
| Brightness | 8,000nits |
| Scanning | 1/4 scan |
| View Angle (50% brightness) | H120°, V60° |
| Viewing Distance | 50–300m |
| Max Power consumption(W) | 750 W/m2 |
| Input Voltage | AC 220/110±15% |
| MTBF | ≥ 10,000 hs |
| Operating Temperature | -30 ℃ ~ +70 ℃ |
| Operationg humidity | 10%～75% |
| Protection: | Surger Protector/ Circuit Breaker |
| Fan: | Sunon Ball-Bearing/220v Ac |
| Control System | Asyn(XIXUN)/ Syn (Linsn, NovaStar) |
| Certificates | CE,ROHS |
