O Series
High Definition Outdoor Signboard
8mm;4000 nit

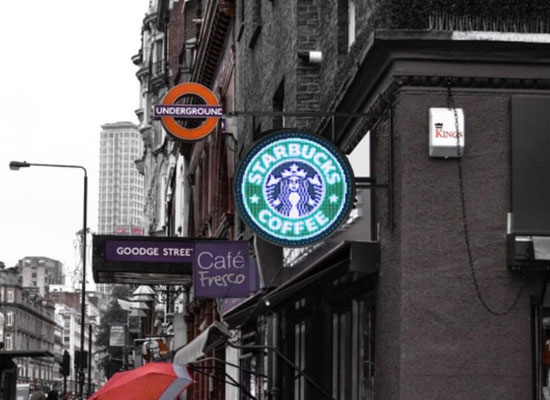

Digital LED logo sign is a new type of
shop signboard, which makes your brand
more remarkable and valuable

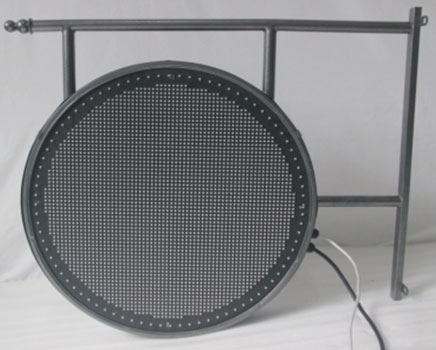

Easy Installation
Super Slim Design,Light weight with only 8.5KG.
Smart Mount Bracket with quick installation

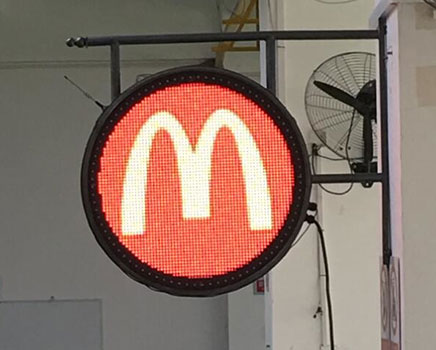

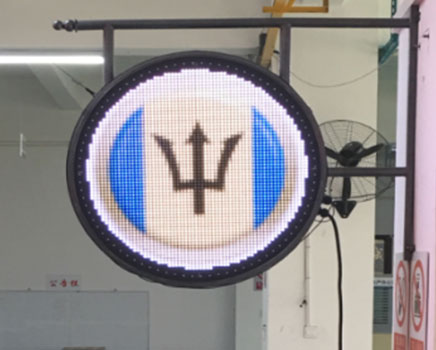

Round Shape Design
Round Shape Design to meet most of logo display;
600mm size in diameter, which is suitable to be installed in most of streets;
Multi Control Method
Plug in ” N” Plug by using USB.
WIFI Controller is available
Optional 3G controller
Specification:
| Pixel Pitch | 8mm |
| Pixel Configuration | SMD3535, 1R1G1B 3-in-1 |
| Pixel Density | 15625 dots/m2 |
| Cabinet Density | 4096 dots |
| Scan Mode | 1/8 scan |
| Max Consumption | 60W |
| Average Consumption | 30W |
| White Balance Color | 6000-15000k |
| Brightness Control | Red,Green and Blue 256 Grade/Each |
| Frame Size | Ø:60cm x D:10cm |
| Frame Design | Double-sided |
| Input Voltage | AC220V/50Hz or AC110V/60Hz |
| IP grade | IP65 for both sides |
| White balance brightness | 3500 nits |
| Temperature-operating | ﹣25℃～45℃ |
| Humidity-operating | 10%～95% |
| Operating System | Windows98/me/2000/NT/XP/W8/Vista |
| Defects Rate | ≤0.00001 |
| Module input Voltage | 5V |
| View angle | Horizontal 160° Vertical 120° |
| Optimal Viewing Distance | 8m-50m |
| Life Span | 100,000 hours |
| Control Methord | Asynchronous (Wifi/USB) |
| Net Weight | 8.5kg |
| Package: | 93x79x15cm |
